FORAGE APPLICATORS




Nuhn Forage Inc. is a Canadian manufacturer and distributor of quality hay preservatives, hay applicators and related agricultural products. We remain committed to our customers by assisting with the selection and integration of liquid applicator equipment for forage harvesting. Our experience in the hay preservation business, and our knowledge of liquid and granular applicators for harvests in Canadian climates, ensures you will receive field tested equipment and technology that is dependable and efficient for applying your forage preservative.



LIQUID APPLICATORS

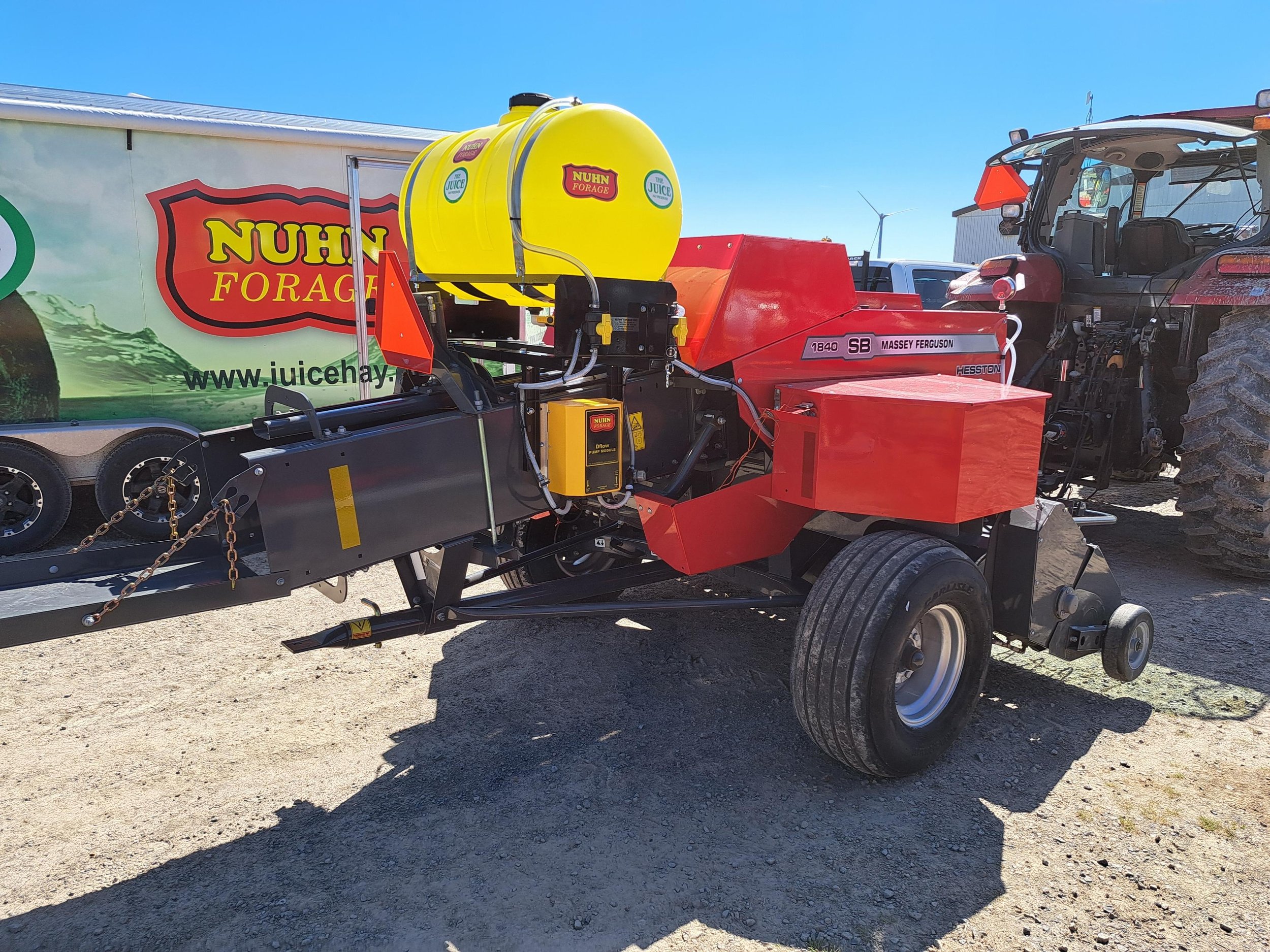

Dohrmann DE-100

Features:

  • 100 gallon tank

  • heavy duty frame

  • 12 volt, 3 valve high volume pump

  • priming and self-filling capabilities

  • universal 3 nozzle assembly for many applications

  • manual pressure regulator application control

  • pump unit with standard power cord, manual on-off switch and in-line guage

  • mounting brackets available for most balers

Recommended Options:

  • SP-1 Speed Control

  • Digiflow Digital Flowmeter or Ball-Type Flowmeter

  • Moisture Tester


Dohrmann DE-55

Features:

  • 55 gallon tank

  • heavy angle iron

  • 12 volt, 3 valve high volume pump

  • priming and self-filling capabilities

  • universal 3 nozzle assembly for many applications

  • manual pressure regulator application control

  • pump unit with standard power cord, manual on-off switch and in-line guage

  • mounting brackets available for most balers

Recommended Options:

  • SP-1 Speed Control

  • Digiflow Digital Flowmeter or Ball-Type Flowmeter

  • Moisture Tester


Dohrmann DE-25

Features:

  • 25 gallon tank

  • priming and self-filling capabilities

  • includes flat surface mounting brackets

  • tank mounted pump

  • universal 2 nozzle assembly for many applications

  • manual pressure regulator application control

  • pump unit with standard power cord, manual on-off switch and in-line guage

  • mounting brackets available for most balers

Recommended Options:

  • SP-1 Speed Control

  • Digiflow Digital Flowmeter or Ball-Type Flowmeter

  • Moisture Tester


GRANULAR APPLICATORS


Valmar 455

Features:

  • mounts easily to most balers

  • efficient air driven application

  • 12 volt fan that operates at 3600 RPM

  • extremely accurate metering

  • flexible heavy duty hoses

  • convenient in-cab monitoring and control

  • weather tight hopper with bottom shut-off

  • 2.8 cubic foot capacity

  • fitted tarp included

  • automatic shut-off for round balers when tying

Options:

  • Mounting bracket for most balers


gandy 45 lb

Features:

  • Translucent hopper translucent hopper to visually gauge volume

  • Hopper made with UV protection and anti-static properties

  • Bolt-on stainless steel precision mated bottom and slide - removes for cleaning

  • Porous, oil-impregnated bearings with weather-guard seals and bearing retainers

  • 8-inch rubber rotor bar (5-bladed) supplies material to the hopper openings and restricts material flown when rotor stops

  • U-frame bracket allows for surface mounting

  • 12-volt, 4 amp electric (1/64 hp) motor drive assembled in place

  • Hole closure caps and spring clips included to close-off unused outlet(s)

Options:

  • Extension adds approximately 30 lbs., of capacity; 110-volt converter allows operator to plug unit into any 110-volt power source


Gandy 100 lb

Features:

  • 2.3 cu. ft. translucent hopper to visually gauge volume

  • Hopper made with UV protection and anti-static properties

  • Bolt-on stainless steel precision mated bottom and slide - removes for cleaning

  • Porous, oil-impregnated bearings with weather-guard seals and bearing retainers

  • 8-inch rubber rotor bar (5-bladed) supplies material to the hopper openings and restricts material flown when rotor stops

  • U-frame bracket allows for surface mounting

  • 12-volt, 4 amp electric (1/64 hp) motor drive assembled in place

  • Hole closure caps and spring clips included to close-off unused outlet(s)

    Options:

  • 110-volt converter allows operator to plug unit into any 110-volt power source


APPLICATOR ACCESSORIES



SP1
Speed Control


FX-2010
Moisture Tester

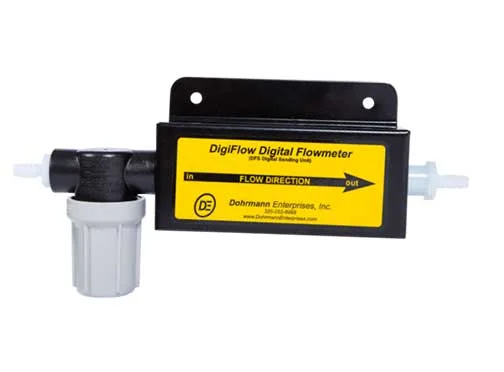

Digiflow
digital flowmeter


ball-type
flowmeter



Liquid Applicator Kits

Liquid Applicator KitsIncluded in Kits
Deluxe + FX-2010 KitApplicator, Mounting Bracket*, Speed Control, Digital Flowmeter, In-chamber Moisture Tester
Deluxe KitApplicator, Mounting Bracket*, Speed Control, Digital Flowmeter
Intermediate KitApplicator, Mounting Bracket*, Speed Control, Ball-Type Flowmeter
Standard KitApplicator, Mounting Bracket*, Speed Control


* Available for certain makes and models of balers
